For the application engineer, implementing SWIR (Short-Wave Infrared) imaging does not end with selecting the right InGaAs sensor. Because InGaAs is fundamentally different from the CMOS silicon used in visible imaging—possessing higher dark current, inherent non-uniformity, and unique thermal dependencies—software and system integration are an important part of getting the best SWIR performance.
Moving from a raw sensor output to a scientifically valid, radiometrically calibrated image requires a deep understanding of the signal chain. This guide explores the physics of SWIR calibration, the architecture of high-speed data pipelines, and the complexities of hyperspectral data cubes.
Calibrating SWIR Cameras: Flat-Field, PRNU/DSNU, and Radiometry
Unlike silicon-based sensors, InGaAs sensors are “noisy” by nature. Every pixel in a SWIR array behaves slightly differently due to the epitaxial growth process of the InGaAs layers. To achieve a clean image, we must implement Non-Uniformity Correction (NUC).
The Physics of DSNU and PRNU
The two primary noise components addressed in SWIR calibration are:
- Dark Signal Non-Uniformity (DSNU): This variation in pixel output, which occurs when no light is present, is heavily temperature-dependent. As the sensor warms, dark current increases, often doubling every 7–9 degrees Celsius.
- Photo Response Non-Uniformity (PRNU): This is the variation in “gain” across the pixels. Even under perfectly uniform illumination, some pixels will be more sensitive than others due to variations in quantum efficiency (QE) and capacitance.
The Flat-Field Correction (FFC) Pipeline
Instead of just accepting this raw data, a two-step correction process often referred to as Flat-Field Correction (FFC) offers additional clarity:
- The Offset Step: We first capture a “dark frame” with the shutter closed. This records the DSNU as a baseline, which is then subtracted from every subsequent frame to clear out the noise floor.
- The Gain Step: Next, we capture a frame under uniform illumination (often using an integrating sphere). This identifies which pixels are over-performing or under-performing. We then apply a multiplier to “level the field,” ensuring that a uniform light source results in a uniform digital image.
For high-precision R&D, radiometric calibration goes a step further. It translates the raw digital counts into absolute physical units of radiance or irradiance. This involves a multi-point calibration against a known blackbody source, which is critical when using the camera as a non-contact thermometer for processes exceeding 250 degrees Celsius.
High-Speed SWIR Imaging Pipelines: From Interface to FPGA/GPU

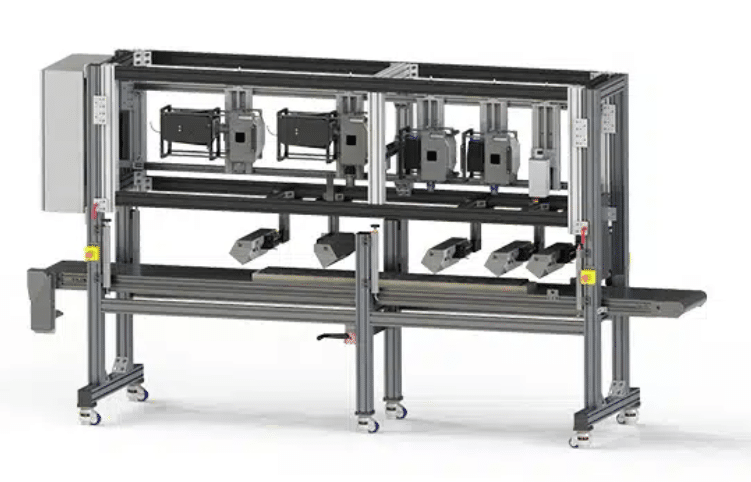

In industrial sorting or machine vision, SWIR cameras often operate at frame rates exceeding 400 fps (area scan) or line rates of 40 kHz (line scan). This creates a massive data throughput that can overwhelm standard PC architectures.
Choosing the Interface: Bandwidth vs. Latency
The selection of the physical interface is the first consideration in system design:
- GigE Vision (1G/10G): Ideal for long cable runs, but introduces higher CPU overhead and jitter.
- Camera Link: A legacy standard that provides low-latency, deterministic data transfer, but requires specialized frame grabbers.
- CoaXPress (CXP): The modern choice for high-speed SWIR. CXP-12 can deliver up to 12.5 Gbps, supporting the massive data volumes of high-resolution InGaAs sensors without dropping frames.
FPGA vs. GPU Processing
To maintain real-time performance, the imaging pipeline is often split between the FPGA (Field Programmable Gate Array) and the GPU (Graphics Processing Unit).
- On-Camera FPGA: Most scientific SWIR cameras perform the Next Unit of Computing (NUC), Bad Pixel Replacement (BPR), and image flipping directly on the internal FPGA. This ensures that the data hitting the host computer is already “clean.”
- Host-Side GPU: For complex tasks like defect detection in semiconductor wafer testing or polymer classification in recycling, the data is offloaded to a GPU. Using Compute Unified Device Architecture (CUDA) or OpenCL, the GPU can perform per-pixel spectral analysis or run neural networks at speeds that a CPU cannot match.
Using SWIR Cameras for Hyperspectral Imaging: System Architectures
Hyperspectral imaging (HSI) is perhaps the most powerful application of SWIR technology. While a standard camera sees “intensity,” a hyperspectral system sees a continuous spectrum for every single pixel.
The Hypercube Architecture
In HSI, we deal with a “Data Cube,” where the third dimension is wavelength. In the SWIR range, this allows us to identify materials based on chemical “overtones” — such as distinguishing between different types of white powders or identifying specific resin types in carbon fiber composites.
System Architectures:

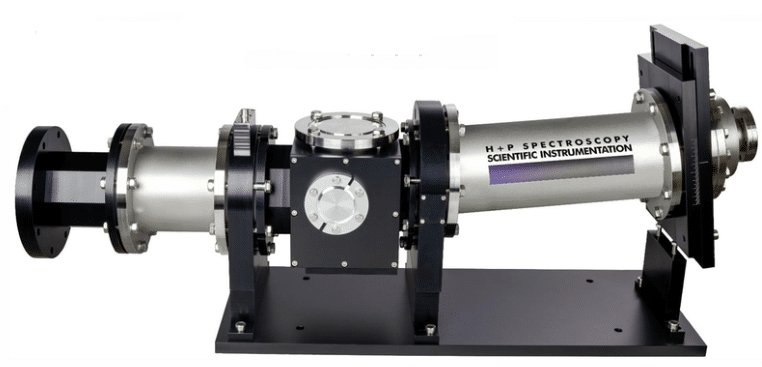

- Push-broom (Line Scan): The most common scientific approach, a line scan uses a slit-based spectrograph to disperse light across a 2D InGaAs sensor. One axis of the sensor represents spatial information, while the other represents spectral information. The second spatial dimension is generated by the motion of the object or the camera.
- Snapshot imaging: This method uses a mosaic filter on the sensor (similar to a Bayer filter, but with more bands). This allows for instant 3D data capture but at a significantly lower spatial resolution.
Managing Data Volumes
A single SWIR hyperspectral scan can easily exceed 10 GB. For R&D scientists, the software challenge is dimensionality reduction. Using algorithms like Principal Component Analysis (PCA) or Partial Least Squares (PLS), the system can compress the hypercube into a few “classification maps,” highlighting only the specific chemical signatures relevant to the application (e.g., moisture content or polymer type).
Integration Summary: Building a Robust System
Successfully integrating SWIR into a scientific or industrial environment requires a holistic view of the “photon-to-bit” journey. If the calibration is flawed, the high-speed pipeline will only serve to deliver “perfectly clear” but scientifically inaccurate data.
| Component | Integration Priority |
|---|---|
| Cooling Control | Ensure TEC stability to ±1 degree Celsius to maintain DSNU validity. |
| Triggering | Use hardware-level TTL triggers for microsecond synchronization with strobe lights. |
| Bad Pixel Map | InGaAs sensors naturally have more "hot pixels"; ensure your software supports dynamic BPR. |
| API/SDK | Choose a camera with GenICam/GigE Vision compliance for easier integration with LabVIEW, MATLAB, or Python. |
